Polycarbonate Textured Sheets Manufacturer in India

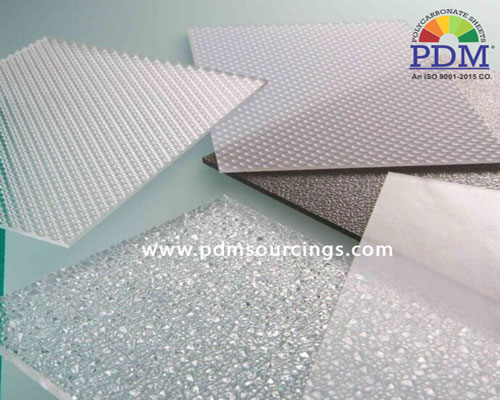

PDM Polycarbonate textured sheets refer to thermoplastic panels with a distinct surface texture. These sheets are characterised by their unique tactile or visual patterns, providing an aesthetic appeal and often serving functional purposes. The texture can enhance light diffusion, reduce glare, or offer a decorative finish. These sheets maintain the inherent properties of polycarbonate, such as strength, transparency, and versatility, making them suitable for applications like decorative panels, privacy screens, and architectural elements where both aesthetics and performance are important.
PDM has the highest range of Polycarbonate Textured sheets - PDM Polycarbonate raindrop sheet, PDM Polycarbonate solid embossed sheets, PDM Polycarbonate BOX sheet, PDM Polycarbonate DIAMOND/CRYSTAL sheet, PDM Polycarbonate PLATINUM sheet and PDM Polycarbonate mosaic sheet
PDM Textured Polycarbonate Sheet is designed with a special pattern on one side and smooth on another side. It is an excellent solution to applications where you require blurred vision and reduce glare light rays. As the most popular plastic sheets, the embossed polycarbonate sheet is used widely for industrial glazing, lamps, and lanterns, privacy screens, shower screens, decorative panels, etc.
Key Features
PDM Polycarbonate Textured Sheets is a lightweight material
The transparency, high impact resistance, and UV resistance
Textured surfaces enhance visual appeal, ensuring material durability.
Making them suitable for use as light diffusers.
The high impact resistance of polycarbonate
It is a preferred choice for safety shields and barriers
Polycarbonate textured sheets can be used in noise barriers
The versatility of polycarbonate allows for the creation of unique
Used in the construction industry to reduce the building costs
Unbreakable and possess excellent impact resistance
Outstanding thermal insulation properties
Resistance to many chemicals, including oils, acids, and solvents.
Application
Parking Shed
Highway noise barriers
Walkways
Window glazing
Sidelights
Agricultural
Furniture and Interior Design
Skylights and Canopies
Noise Barriers
Light Diffusers
Architectural Roofing and glazing
skylight and idelight
Conservatories
Display, signage and decorations
Industrial roofing and glazing
Residential roofing and glazing
Covered swimming Pools
Agricultural Greenhouses
Benefits of Polycarbonate Textured Sheets
Texture Options
Polycarbonate textured sheets are available in various surface textures, such as embossed, mosaic, or platinum patterns. These textures can provide aesthetic appeal, enhance light diffusion, or offer anti-glare properties depending on the application.
High Impact Resistance
One of the standout features of polycarbonate is its exceptional impact resistance. Textured sheets made from polycarbonate can withstand physical impact and are less prone to breakage compared to other materials, making them suitable for applications requiring durability.
Lightweight
Polycarbonate is a lightweight material, making textured sheets easy to handle, transport, and install. This feature is particularly advantageous in construction and other applications where weight is a consideration.
Transparency
Polycarbonate textured sheets can maintain high optical clarity. This transparency is important in applications where visibility or the transmission of natural light is desired, such as in skylights, canopies, or greenhouse panels.
UV Resistance
Polycarbonate has built-in UV resistance, which helps prevent yellowing and degradation when exposed to sunlight over extended periods. This feature is valuable in outdoor applications where prolonged UV exposure is a concern.
Thermal Insulation
Polycarbonate provides good thermal insulation, helping to regulate temperatures within structures. This feature is beneficial in applications where energy efficiency and temperature control are important considerations.
Chemical Resistance
Textured polycarbonate sheets are resistant to many chemicals, making them suitable for applications where exposure to corrosive substances may occur..
Flame Resistance
Polycarbonate has inherent flame resistance properties. It has a high ignition temperature and is self-extinguishing, adding a level of safety in certain applications.
Easy Fabrication
Polycarbonate can be easily cut, drilled, and molded, allowing for versatile fabrication options. This ease of fabrication facilitates customization to meet specific design requirements.
Abrasion Resistance
: Textured polycarbonate sheets are resistant to abrasion, making them suitable for applications where the material may come into contact with abrasive substances.
Versatility
Polycarbonate textured sheets are versatile and find applications in a wide range of industries, including construction, automotive, electronics, and more. Their adaptability to different environments and conditions makes them a popular choice.
Weatherability
Polycarbonate textured sheets are durable and can withstand various weather conditions, including rain, snow, and extreme temperatures, without significant degradation.
Product Details
- Our Range
- Physical Properties
| S.No | Products Name | Colour | Thickness |
| 1 | PDM Polycarbonate EMBOSSED Sheet | Clear, Blue, Brown, Green, Smoke | 1.3mm, 1.5mm, 2mm, 3mm to 10mm |
| 2 | PDM Polycarbonate MOSAIC Texture Sheet | Clear, Blue, Brown, Green, Smoke | 2mm to 10mm |
| 3 | PDM Polycarbonate BOX Texture sheet | Clear, Blue, Brown, Green, Smoke | 1.3mm to 10mm |
| 4 | PDM Polycarbonate DIAMOND/CRYSTAL Texture Sheet | Clear, Blue, Brown, Green, Smoke | 1.3mm to 10mm |
| 5 | PDM Polycarbonate RIVER Texture Sheet | Clear, Blue, Brown, Green, Smoke | 1.3mm to 10mm |
| 6 | PDM Polycarbonate RAINDROP Texture Sheet | Clear, Blue, Brown, Green, Smoke | 1.5mm to 10mm |
| 7 | PDM Polycarbonate PLATINUM Texture Sheet | Clear, Blue, Brown, Green, Smoke | 2mm to 10mm |
| Physical Properties | Testing Method | Value | Unit |
| Specific Gravity | D-792 | 1.2 | g/cm3 |
| Tensile Strength at Yield | D-638 | >60 | Mpa or N/mm² |
| Tensile Strength at Break | D-638 | >65 | Mpa or N/mm² |
| Coefficient of Linear Thermal Expansion | D-696 | 0.065 | mm/m °C |
| Thermal Conductivity | C-177 | 0.21 | W/m K |
| Elongation at Break | D-638 | >100 | % |
| Tensile Modulus of Elasticity | D-638 | 2400 | MPa |
| Flexural Strength | D-790 | 100 | MPa |
| Fire rating | UL 94 | V2 | / |
Our Products Range
Polycarbonate Textured Embossed Sheet
PDM Polycarbonate Textured Embossed Sheet has several features with high impact resistance, is lightweight, can be easily cold bend processed, and hot molding. Hence, it can be widely used in construction and decorations.
Colours - Clear, Blue, Brown, Green, Smoke (Customisable Subject to MOQ)
Standard Thickness - 1.3mm, 1.5mm, 2mm, 3mm to 10mm
Standard Width - 915mm, 1220mm, 1525mm, 1830mm, 2135mm (Customisable Subject to MOQ)
Standard length - 30500mm (Customisable Subject to MOQ)
Opaque & Translucent Options Available
Anti Fog, UV Coated & Solar Control Options Available

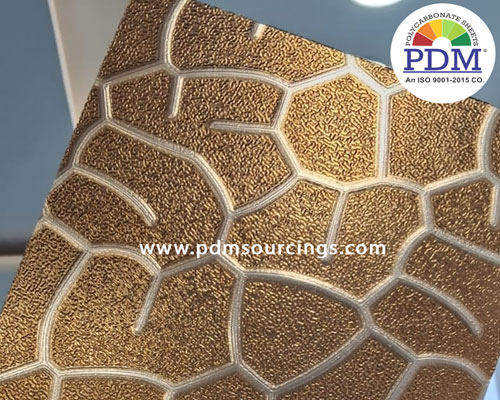

Polycarbonate Textured Mosaic Sheet
PDM Polycarbonate Textured Mosaic Sheet has several features with high impact resistance, is lightweight, can be easily cold bend processed, and hot molding. Hence, it can be widely used in construction and decorations. This adds visual interest and can be used decoratively in applications such as architectural elements, interior design, or decorative panels.
Colours - Clear, Blue, Brown, Green, Smoke (Customisable Subject to MOQ)
Standard Thickness - 2mm to 10mm
Standard Width - 915mm, 1220mm, 1525mm, 1830mm, 2135mm (Customisable Subject to MOQ)
Standard length - 30500mm (Customisable Subject to MOQ)
Opaque & Translucent Options Available
Anti Fog, UV Coated & Solar Control Options Available

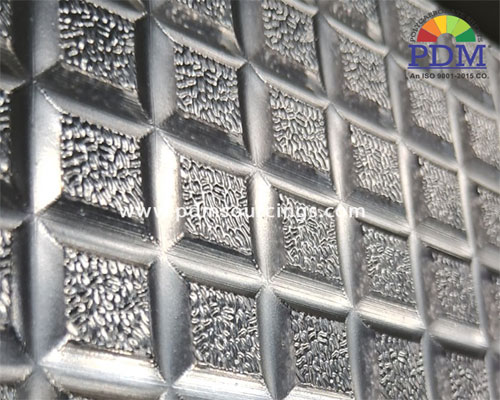

Polycarbonate Textured Box Sheet
PDM Polycarbonate textured BOX sheets offer superior UV resistance, protecting against yellowing or degradation caused by prolonged exposure to sunlight. This makes them suitable for outdoor applications without compromising on performance over time.
Colours - Clear, Blue, Brown, Green, Smoke (Customisable Subject to MOQ)
Standard Thickness - 1.3mm to 10mm
Standard Width - 915mm, 1220mm, 1525mm, 1830mm, 2135mm (Customisable Subject to MOQ)
Standard length - 30500mm (Customisable Subject to MOQ)
Opaque & Translucent Options Available
Anti Fog, UV Coated & Solar Control Options Available

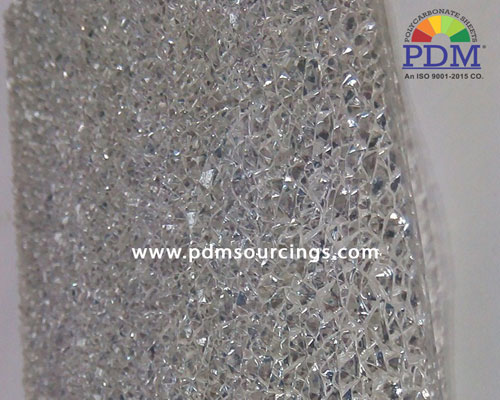

Polycarbonate Textured Diamond/Crystal Sheet
Highly robust yet neatly textured with diamond patterns, this is an excellent product for tough weather conditions.
its exceptionally high impact, strength, and lightweight, Diamond Sheets can easily withstand the cold bend process and hot molding, virtually unbreakable, they are UV resistant, self-extinguishable, and light-transmitting, these rolls and sheets come with embossed patterns.
Colours - Clear, Blue, Brown, Green, Smoke (Customisable Subject to MOQ)
Standard Thickness - 1.3mm to 10mm
Standard Width - 915mm, 1220mm, 1525mm, 1830mm, 2135mm (Customisable Subject to MOQ)
Standard length - 30500mm (Customisable Subject to MOQ)
Opaque & Translucent Options Available
Anti Fog, UV Coated & Solar Control Options Available
Polycarbonate Textured River Sheet
PDM Polycarbonate textured River sheets include high impact resistance, excellent light diffusion, optical clarity, UV resistance, lightweight construction, and thermal insulation properties. These characteristics make them an attractive choice for a wide range of applications, from architectural projects to industrial and commercial uses.
Colours - Clear, Blue, Brown, Green, Smoke (Customisable Subject to MOQ)
Standard Thickness - 1.3mm to 10mm
Standard Width - 915mm, 1220mm, 1525mm, 1830mm, 2135mm (Customisable Subject to MOQ)
Standard length - 30500mm (Customisable Subject to MOQ)
Opaque & Translucent Options Available
Anti Fog, UV Coated & Solar Control Options Available
Polycarbonate Textured Raindrop Sheet
Polycarbonate Textured Raindrop sheets offer unique advantages and features that make them well-suited for specific applications, particularly in the realm of architectural and design elements. These sheets are designed with a distinct raindrop pattern on the surface, providing both aesthetic appeal and functional benefits.
Colours - Clear, Blue, Brown, Green, Smoke (Customisable Subject to MOQ)
Standard Thickness - 1.5mm to 10mm
Standard Width - 915mm, 1220mm, 1525mm, 1830mm, 2135mm (Customisable Subject to MOQ)
Standard length - 30500mm (Customisable Subject to MOQ)
Opaque & Translucent Options Available
Anti Fog, UV Coated & Solar Control Options Available
Polycarbonate Textured Platinum Sheet
PDM Polycarbonate textured PLATINUM sheets High impact strength and lightweight, PLATINUM Sheets can easily withstand the cold bend process and hot molding, virtually unbreakable, they are UV resistant, self-extinguishable, and light-transmitting, these rolls and sheets come with embossed patterns.
Colours - Clear, Blue, Brown, Green, Smoke (Customisable Subject to MOQ)
Standard Thickness - 2mm to 10mm
Standard Width - 915mm, 1220mm, 1525mm, 1830mm, 2135mm (Customisable Subject to MOQ)
Standard length - 30500mm (Customisable Subject to MOQ)
Opaque & Translucent Options Available
Anti Fog, UV Coated & Solar Control Options Available
Application
Parking Shed
Walkways
Furniture and Interior Design
Noise Barriers
Architectural Roofing and glazing
Skylight And Idelight
Covered swimming Pools
Agricultural Greenhouses
