Polycarbonate Solid Sheets & Rolls Manufacturer in India
PDM Solid polycarbonate sheet offers high light transmission, excellent impact resistance, and extraordinary durability. It is virtually unbreakable as 250-300 times stronger than glass, 20-30 times stronger than plexiglass sheets, and 25 times stronger than tempered glass. Therefore, it is widely known as polycarbonate glazing sheet, polycarbonate sheeting, polycarbonate panel, unbreakable plastic sheet, etc.
PDM Polycarbonate solid sheets are transparent, durable thermoplastic panels known for their strength and versatility. These sheets, offering impact resistance and high clarity, find applications in diverse fields such as construction, greenhouses, and safety glazing. Their lightweight nature, ease of customization, and UV resistance contribute to their popularity in various uses, including skylights, signage, and DIY projects.
Key Features
PDM Polycarbonate Solid sheet is a lightweight material
Unbreakable and possess excellent impact resistance
Outstanding thermal insulation properties
Its transparency, high impact resistance, and heat resistance
Used in the construction industry to reduce the building costs
UV resistance, protecting it from the harmful effects of sunlight.
User-friendly material for fabrication and customization
Polycarbonate is resistant to many chemicals
Application
Construction and Architecture
Skylights and Roofing
Safety Glazing and Security
Windows and Doors
Industrial Applications
Machine Guards
Transportation
Aircraft Windows
Electronics and Technology
Display Screens & Electronic Enclosures
Sports and Recreation
Safety Shields
Signage and Displays
Safety Shields & Display cases
Medical Applications
Face Shields & Medical Equipment Housings
Benefits of PDM Polycarbonate Solid Sheets & Rolls
High Impact Resistance
PDM Polycarbonate sheets and rolls offer exceptional impact resistance, making them virtually unbreakable. This property makes them suitable for applications where durability and safety are crucial.
Optical Clarity
These sheets provide excellent optical clarity, allowing for high light transmission. This makes them ideal for applications where visibility or natural light is essential, such as in skylights or transparent barriers.
UV Resistance
PDM Polycarbonate sheets are treated to resist ultraviolet (UV) radiation, preventing yellowing and maintaining optical clarity over an extended period. This UV resistance makes them suitable for outdoor applications.
Wide Temperature Range
PDM Polycarbonate exhibits stability over a broad temperature range. It can withstand both high and low temperatures without significant changes in its physical properties, making it versatile for various environments.
Lightweight
Despite their durability, PDM Polycarbonate sheets are lightweight, making them easy to handle and install. This feature is particularly advantageous in construction and design applications.
Flame Resistance
Many PDM Polycarbonate products come with flame-resistant properties, meeting safety standards for various applications. This feature is crucial in industries where fire safety is a primary concern.
Easy to Fabricate
PDM Polycarbonate sheets and rolls can be easily cut, shaped, and molded to fit specific design requirements. This versatility in fabrication makes them suitable for a wide range of applications
Chemical Resistance
These sheets demonstrate resistance to many chemicals, ensuring that they can withstand exposure to various substances without degradation. This property is essential in industrial settings where chemical resistance is critical.
Noise Reduction
PDM Polycarbonate sheets offer some degree of noise reduction, making them suitable for applications where sound insulation is important, such as in architectural designs or highway noise barriers.
Long Lifespan
PDM Polycarbonate products typically have a long lifespan due to their durable nature and resistance to environmental factors. This longevity contributes to their cost-effectiveness over time.
Product Details
- Our Range
- Physical Properties
| S.No | Products Name | Colour | Thickness |
| 1 | PDM POLYCARBONATE SOLID TRANSPARENT SHEET | Clear, Bronze, Blue, Green, Solar Grey | 0.8mm to 15mm |
| 2 | PDM POLYCARBONATE SOLID TRANSLUCENT SHEET | Opal White, White Diffuser, Milky White | 0.8mm-15mm |
| 3 | PDM POLYCARBONATE SOLID OPAQUE SHEET | Milky White, Opal White, Black, Yellow, Dark Blue, Dark Grey, Dark Brown | 1.2mm - 15mm |
Property |
Test Method |
Testing Condition Width |
Unit |
Value |
Density |
D-792 |
|
g/cm3 |
1.2 |
Heat Deflection Temperature |
D-648 |
Load: 1.82 MP |
°C |
135 |
Short Time Service Temperature |
|
|
°C |
from -50 to +130 |
Long Time Service Temperature |
|
|
°C |
from -40 to +100 |
Coefficient of Linear Thermal Expansion |
D-696 |
|
mm/m °C |
0.065 |
Thermal Conductivity |
C-177 |
|
W/m K |
0.21 |
Tensile Strength at Yield |
D-638 |
10 mm/min |
Mpa or N/mm² |
>65 |
Tensile Strength at Break |
D-638 |
10 mm/min |
Mpa or N/mm² |
>60 |
Elongation at Yield |
D-638 |
10 mm/min |
% |
6 |
Elongation at Break |
D-638 |
|
% |
>95 |
Tensile Modulus of Elasticity |
D-638 |
1 mm/min |
MPa |
2350 |
Flexural Strength |
D-790 |
1.3 mm/min. |
MPa |
100 |
Flexural Modulus |
D-790 |
1.3 mm/min. |
MPa |
2600 |
Impact Falling Weight |
ISO 6603/1 E50 |
3mm sheet |
J |
158 |
Light Transmission |
D-1003 |
|
% |
82 – 92 |
Haze |
D-1003 |
|
% |
<0.5 |
Flammability rate |
UL 94 |
|
|
V-2 or V-0 |
Our Products Range

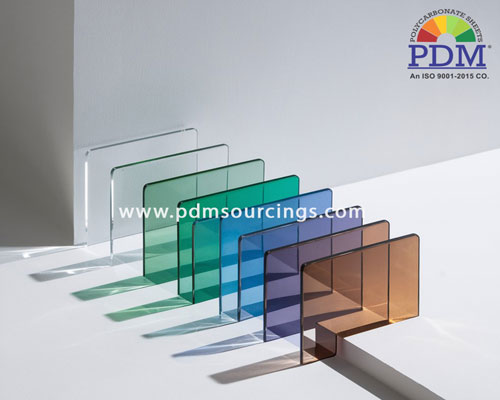

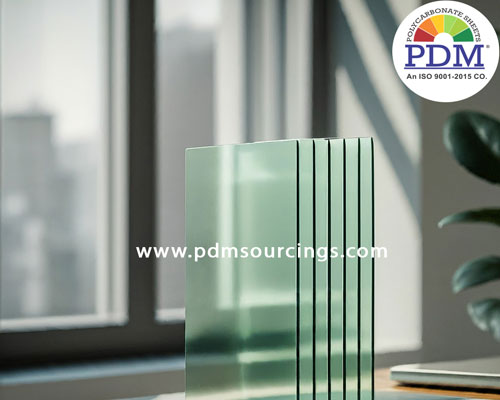

Polycarbonate Solid Transparent Sheet
PDM polycarbonate solid transparent sheet refers to a flat, rigid material made from polycarbonate resin that is transparent or clear in appearance. Polycarbonate is a type of thermoplastic polymer known for its high impact resistance, optical clarity, and excellent mechanical properties.
Colours - Clear, Bronze, Blue, Green, Solar Grey
Standard Thickness - 0.8mm to 15mm
Standard Width - 915mm, 1220mm, 1525mm, 1830mm, 2135mm (Customisable Subject to MOQ)
Standard length - 30500mm (Customisable Subject to MOQ)
Anti Fog, UV Coated & Solar Control Options available.
Polycarbonate Solid Translucent Sheet
PDM polycarbonate solid translucent sheet refers to a flat, rigid material made from polycarbonate resin that is translucent, allowing diffused light to pass through without being completely transparent.
Colours - Opal White, White Diffuser, Milky White
Standard Thickness - 0.8mm-15mm
Standard Width - 915mm, 1220mm, 1525mm, 1830mm, 2135mm (Customisable Subject to MOQ)
Standard length - 30500mm (Customisable Subject to MOQ)
Anti Fog, UV Coated & Solar Control Options available.

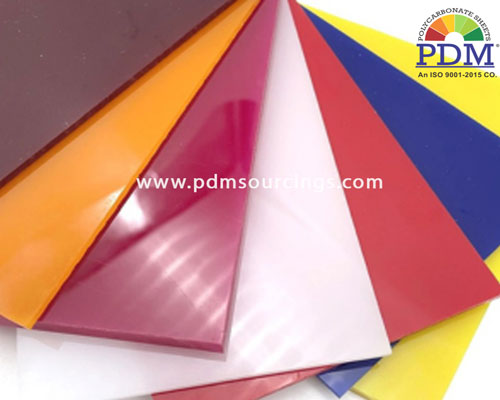

Polycarbonate Solid Opaque Sheet
PDM polycarbonate solid opaque sheet refers to a flat, rigid material made from polycarbonate resin that is not transparent or translucent but rather completely blocks the passage of light. Unlike transparent or translucent sheets, opaque polycarbonate sheets do not allow light to pass through, making them suitable for applications where visibility or light transmission is not desired.
Colours - Milky White, Opal White, Black, Yellow, Dark Blue, Dark Grey, Dark Brown
Standard Thickness - 1.2mm - 15mm
Standard Width - 915mm, 1220mm, 1525mm, 1830mm, 2135mm (Customisable Subject to MOQ)
Standard length - 30500mm (Customisable Subject to MOQ)
Anti Fog, UV Coated & Solar Control Options available.
Application
Construction and Architecture
Skylights and Roofing
Safety Glazing and Security
Windows and Doors
Industrial Applications
Machine Guards
Transportation
Aircraft Windows
Electronics and Technology
Display Screens & Electronic Enclosures
Outdoor Shelters and Walkways
Noise Barriers
