Polycarbonate Corrugated Sheets
Polycarbonate Corrugated Sheets
Polycarbonate Corrugated Sheets Manufacturer in India
PDM Corrugated polycarbonate sheet is one of the best polycarbonate roofing panels, it offers excellent light transmittance, outstanding impact toughness. It is lightweight and easy to install. It is designed to match the metal panel with a certain profile for building and workshop roof, greenhouse roof, and wall or the DIY carport in your backyard.
The co-extruded UV coating layer blocks more than 99% of ultraviolet rays, therefore, the corrugated polycarbonate sheet has wonderful weather ability, a low yellow index, normally, the lifespan will be more than 10 years. Corrugated polycarbonate sheet is virtually unbreakable with a thickness range from 0.8mm to 2mm. It withstands the most terrible weather without breaking or buckling including hailstone, heavy snowfall, rainstorm, sandstorm, ice formation, etc. The normal colour is clear/transparent, but custom colours are available.
Our easy to install and easily transportable sheets can easily be cold curved to give shape to the vibrant imagination of architects and design professionals. Being a great alternative to glass due to its excellent heat insulation properties. These Polycarbonate Plastic Sheets are suitable for energy-efficient light transmitting constructions.
PDM Polycarbonate corrugated sheets are formed with a series of parallel ridges and grooves, creating a wavy or corrugated pattern. This design enhances the structural integrity of the sheets while maintaining flexibility and light transmission.
Key Features
High thermal insulation
Lightweight and impact resistant
High light transmission
Excellent structural durability
Weather and UV resistance
Easy to handle and install
High fire performance rating
High Impact Resistance
Application
Architectural roofing and glazing
Skylights and sidelights
Conservatories
Covered walkways
Displays, signage and decorations
Industrial/ Residential roofing and glazing
Covered swimming pools
Agricultural greenhouses
Benefits of Polycarbonate Corrugated Sheets
High Impact Resistance
Polycarbonate sheets are known for their exceptional impact resistance. They are virtually unbreakable, making them suitable for areas prone to hail, storm, or high-impact events.
Transparency
Polycarbonate is inherently transparent, allowing natural light to penetrate the structure. This feature is particularly advantageous for applications where daylighting is desired.
Lightweight
Polycarbonate is a lightweight material, making it easy to handle and install. It reduces the overall load on the supporting structure.
UV Resistance
PDM polycarbonate sheets are often treated with UV coatings to protect against the harmful effects of ultraviolet radiation. This helps prevent yellowing, surface degradation, and loss of optical clarity over time.
Thermal Insulation
Polycarbonate has good thermal insulation properties, helping to regulate temperatures inside buildings. PDM corrugated sheets can contribute to energy efficiency by reducing the need for excessive heating or cooling.
Chemical Resistance
PDM polycarbonate sheets are resistant to many chemicals, making them suitable for environments where exposure to various substances is a concern. This can be important in industrial applications.
Long Lifespan
PDM polycarbonate corrugated sheets are known for their durability and longevity. They can withstand weathering and environmental factors, contributing to a longer lifespan compared to some other roofing materials.
Ease of Maintenance
These sheets are relatively easy to clean and maintain. They can be washed with mild soap and water to remove dirt and debris.
Weather Resistance
Polycarbonate is resistant to weathering, including extreme temperatures, rain, and wind, making it a durable choice for outdoor applications.
Flexibility
The flexibility of polycarbonate allows for easy bending and shaping, making it adaptable to various roof designs.
Flame Resistance
Polycarbonate sheets generally have good fire-resistant properties, contributing to the safety of the structure.
Product Details
- Our Range
- Physical Properties
| S.No | Products Name | Colour | Thickness |
| 1 | PDM Polycarbonate SOLID CORRUGATED (GI Profile) | Clear Transparent or as per requirement | 1mm to 3mm |
| 2 | PDM Polycarbonate EMBOSSED CORRUGATED | Clear Transparent or as per requirement | 1mm to 3mm |
| 3 | PDM Polycarbonate Profiled Sheets | Clear Transparent or as per requirement | 1mm to 3mm |
| 4 | PDM Polycarbonate DIFFUSER SKYLIGHTS | Clear Transparent or as per requirement | 1mm to 3mm |
| Items | Testing Method | Unit | Value |
| Density | ASTM D792 | g/cm^3 | 1.2 |
| Service Temperature (Short term) | °C | -50 to 120 | |
| Service Temperature (Long term) | °C | -40 to 100 | |
| Rockwell Hardness | ASTM D785 | R Scale | 110R |
| Light Transmission | ASTM D1003 | % | >88 |
| Haze | ASTM D1003 | % | <0.5 |
| Yellowness Index | ASTM D1925 | <1 | |
| Tensile Strength at Yield | ASTM D-638 | Mpa or N/mm² | >60 |
| Tensile Strength at Break | ASTM D-638 | Mpa or N/mm² | >65 |
| Coefficient of Linear Thermal Expansion | ASTM D-696 | mm/m °C | 0.065 |
| Heat Deflection Temperature | ASTM D648 | °C | 130 |
| Coefficient of Linear Thermal Expansion | ASTM D696 | cm/cm °C | 6.5/100000 |
| Thermal Conductivity | ASTM C-177 | W/m K | 0.21 |
| Elongation at Yield | ASTM D638 | % | 7 |
| Elongation at Break | ASTM D-638 | % | >80 |
| Tensile Modulus of Elasticity | ASTM D-638 | MPa | 2400 |
| Flexural Strength | ASTM D-790 | MPa | 100 |
| Impact Falling Weight (E-50) | ISO 6603/1 E50 | J | 50 |
| Fire rating | UL 94 | / | V1, V2, V0 |
Our Products Range

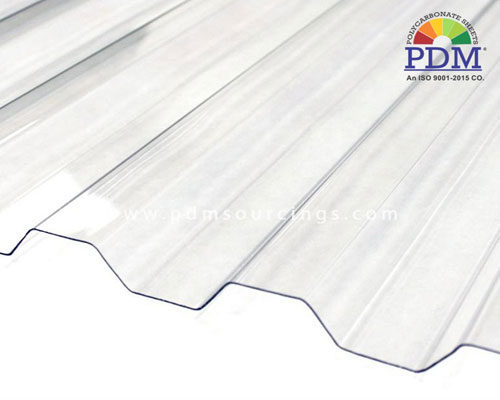

Polycarbonate Solid Corrugated
PDM Polycarbonate Solid corrugated typically refers to a material that has a corrugated (wavy or ridged) structure but is not hollow. In the context of packaging or construction materials, solid corrugated sheets or boards are formed with a continuous layer of material.
Colours - Clear Transparent or as per requirement
Standard Thickness - 1mm to 3mm
Standard Width - 1070mm (Customisable Subject to MOQ)
Standard length - 6100mm (Customisable Subject to MOQ)
Anti Fog & Solar Control Option

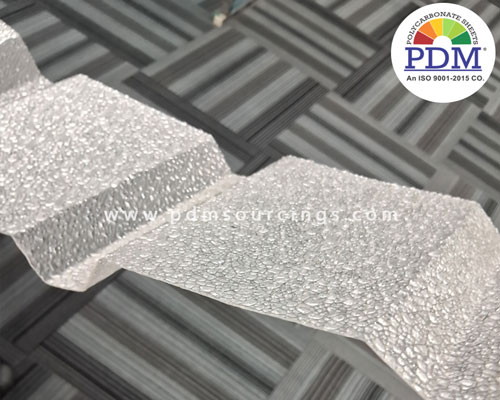

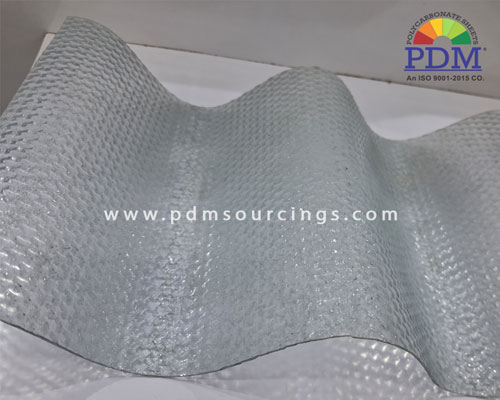

Polycarbonate Embossed Corrugated
Embossing is a process of creating raised patterns, designs, or textures on a surface. Its exceptional strength, and impact resistance. It is commonly used in the production of a variety of products, including compact discs, and construction materials.
Colours - Clear Transparent or as per requirement
Standard Thickness - 1mm to 3mm
Standard Width - 1070mm (Customisable Subject to MOQ)
Standard length - 6100mm (Customisable Subject to MOQ)
Anti Fog & Solar Control Option

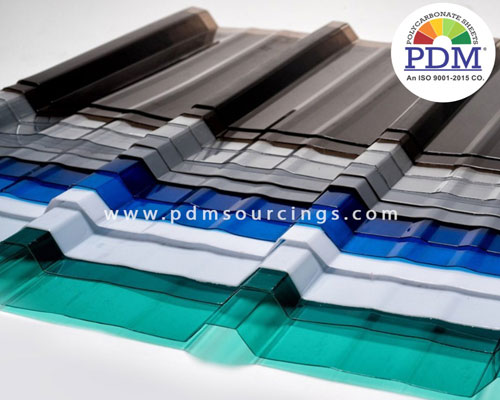

Polycarbonate Profiled Sheets
PDM has the expertise to manufacture the profile sheets as per industry standards and can be matched with any metal profile. Colour options are also available with different texture finishes.
Colours - Clear Transparent or as per requirement
Surface Finish: Transparent or Embossed
Standard Thickness - 1mm to 3mm
Standard Width - 1070mm (Customisable Subject to MOQ)
Standard length - 6100mm (Customisable Subject to MOQ)
Anti Fog & Solar Control Option
Polycarbonate Diffuser Skylights
Polycarbonate diffuser skylights are designed to allow natural light into interior spaces while diffusing and distributing the light evenly. These skylights typically use polycarbonate material for the glazing due to its properties such as high impact resistance, light weight, and optical clarity.
Colours - Clear Transparent or as per requirement
Standard Thickness - 1mm to 3mm
Standard Width - 1070mm (Customisable Subject to MOQ)
Standard length - 6100mm (Customisable Subject to MOQ)
Anti Fog & Solar Control Option
Application
DIY and Home Improvement Projects
Bus Shelters and Waiting Areas
Swimming Pool Enclosures
Walkways and Covered Pathways
Sports Stadiums and Arenas
Greenhouses and Agricultural Structures
Residential Roofing
