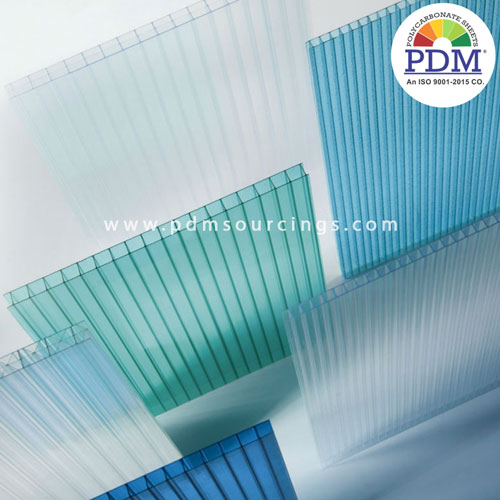

Polycarbonate Multiwall Sheets
Polycarbonate Multiwall Sheets
Polycarbonate Multiwall Sheets Manufacturer in India
PDM Polycarbonate Multiwall Sheets offer a range of colours, finishes and structures. These polycarbonate sheets provide multiple outstanding application benefits like light weight, ease of installation, high stiffness, excellent thermal insulation, long-term light transmission, UV & condensation resistance etc.PDM Polycarbonate multiwall sheets are a type of polycarbonate sheet that features multiple layers or walls separated by air spaces. This design creates a multi-wall structure with hollow cavities between the layers, providing enhanced insulation and additional benefits compared to single-wall polycarbonate sheets. These sheets are commonly used in applications where thermal insulation, light transmission, and impact resistance are crucial.
Key Features
Lightweight material
Easy to handle and install
Unbreakable
Excellent impact resistance
Outstanding thermal insulation properties
Chemical resistance
UV protection on both sides
Energy efficiency in buildings
Application
Parking Shed
Highway Noise Barriers
Walkways
Window Glazing
Sidelights
Architectural Roofing and Glazing
Skylights
Conservatories
Industrial Roofing and Glazing
Residential roofing and Glazing
Covered swimming Pools
Agricultural Greenhouses
Benefits of PDM Polycarbonate Multiwall Sheets
Naturally Strong and Impact Resistant
A polycarbonate sheet may be lightweight, but don’t be fooled, this material is incredibly strong. Although it is lighter than glass, it is nearly impossible to break.
Ideal for Insulation
Compared to glass, plastic, in general, has better insulation properties, and polycarbonate is no different. Less heat is lost through polycarbonate material compared to glass.
Lightweight
Despite their robustness, polycarbonate multiwall sheets are lightweight, making them easy to handle and install.
Can Be Easy to Install
Because it’s malleable, a polycarbonate sheet can be made to fit any application. This ultimately makes it easier and quicker to install than other options on the market, making it ideal for applications such as roofing panels.
Thermal Insulation
The multiwall structure of these sheets provides effective thermal insulation, helping to maintain a comfortable indoor temperature and reduce energy costs.
UV Protection
Many polycarbonate multiwall sheets come with UV-resistant coatings, protecting them from the harmful effects of ultraviolet (UV) radiation and extending their lifespan.
Weather Resistance
These sheets are resistant to various weather conditions, including rain, snow, and hail, making them suitable for outdoor applications.
Flame Resistance
Polycarbonate has inherent flame-retardant properties, adding an extra layer of safety in applications where fire resistance is essential.
Product Details
- Our Range
- Physical Properties
| S.No | Products Name | Colour | Thickness |
| 1 | PDM TWIN WALL MULTIWALL Sheets | Clear, Opal, Blue, Green, Bronze etc. | 4mm to 12mm |
| 2 | PDM TWINWALL 2MM ROLL | Clear, Milky, Blue, Green, Bronze etc. | 2mm |
| 3 | PDM TRIPLE WALL MULTIWALL Sheets | Clear, Opal, Blue Green, Bronze etc. | 8mm to 18mm |
| 4 | PDM FOUR WALL MULTIWALL Sheets | Clear, Opal, Blue Green, Bronze etc. | 8mm to 20mm |
| 5 | PDM X-STRUCTURE MULTIWALL Sheets | Clear, Opal, Blue Green, Bronze etc. | 16mm to 28mm |
| 6 | PDM HONEYCOMB MULTIWALL Sheets | Clear, Opal, Blue Green, Bronze etc. | 10mm to 16mm |
| Item | Test Method | Testing Condition | Unit | Value |
| Density | D-792 | g/cm3 | 1.2 | |
| Heat Deflection Temperature | D-648 | Load: 1.82 MP | °C | 135 |
| Short Term Service Temperature | °C | from -50 to +130 | ||
| Long Term Service Temperature | °C | from -40 to +100 | ||
| Coefficient of Linear Thermal Expansion | D-696 | mm/m °C | 0.065 | |
| Thermal Conductivity | C-177 | W/m K | 0.21 | |
| Tensile Strength at Yield | D-638 | 10 mm/min | Mpa or N/mm² | >65 |
| Tensile Strength at Break | D-638 | 10 mm/min | Mpa or N/mm² | >60 |
| Elongation at Yield | D-638 | 10 mm/min | % | 6 |
| Elongation at Break | D-638 | % | >95 | |
| Tensile Modulus of Elasticity | D-638 | 1 mm/min | MPa | 2350 |
| Flexural Strength | D-790 | 1.3 mm/min. | MPa | 100 |
| Flexural Modulus | D-790 | 1.3 mm/min. | MPa | 2600 |
Polycarbonate Multiwall Sheets Range

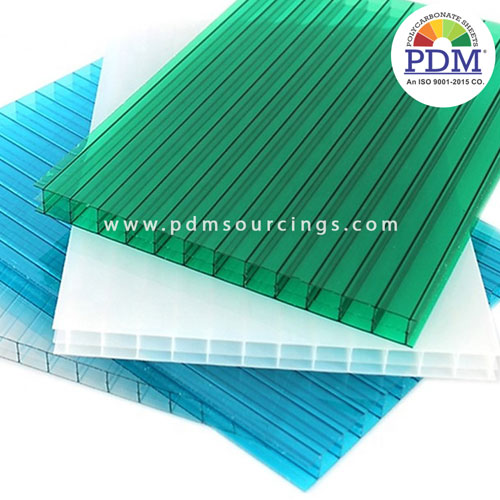

PDM Twinwall Multiwall Sheets
PDM Twin Wall Polycarbonate Sheet offers a rectangular insulation space inside to reduce thermal energy transfer. Meantime, it creates a stronger, lighter weight, and more impact resistance structure. Some people call it a "Double-Wall Polycarbonate Sheet". With the co-extruded UV coating layer, the twin wall polycarbonate sheet offers great weatherability even under intensive ultraviolet rays.
Colours - Clear, Opal, Blue, Green, Bronze etc.
Standard Thickness - 4mm to 12mm (Customisable Subject to MOQ)
Standard Width - 1220mm, 2100mm (Customisable Subject to MOQ)
Standard length - 11900mm (Customisable Subject to MOQ)
Opaque & Translucent Options Available
Anti Fog, UV Coated & Solar Control Options Available
PDM Twinwall 2mm Roll
PDM Twinwall 2MM Polycarbonate Sheet is the number one choice for outdoor project applications because of its superior qualities. Multiwall sheets provide high light transmission while still blocking harmful UV rays. These structured polycarbonate sheets have excellent thermal insulation properties and are extremely light in weight.
Colours - Clear, Milky, Blue, Green, Bronze etc.
Standard Thickness - 2mm
Standard Width - 1220mm, 1525mm, 1830mm, 2135mm (Customisable Subject to MOQ)
Standard length - 30500mm (Customisable Subject to MOQ)
Opaque & Translucent Options Available
Anti Fog, UV Coated & Solar Control Options Available

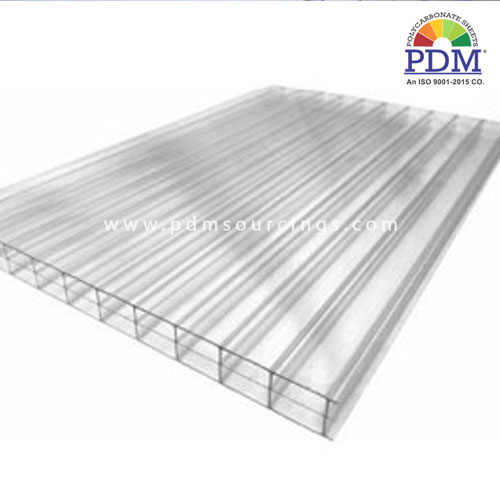

PDM Triple Wall
Four Wall Polycarbonate Sheet is significantly lighter than glass but stronger, more flexible, and more impact resistant. Additionally, the air gaps between the layers act as buffers, dampening noise and providing excellent sound insulation. Sound reduction index can reach R'w = 21-24 dB depending on the sheet thickness and number of layers. This feature is particularly beneficial in urban environments or areas with high noise levels.
Colours - Clear, Opal, Blue Green, Bronze etc.
Standard Thickness - 8mm to 18mm
Standard Width - 1220mm, 2100mm (Customisable Subject to MOQ)
Standard length - 11900mm (Customisable Subject to MOQ)
Opaque & Translucent Options Available
Anti Fog, UV Coated & Solar Control Options Available

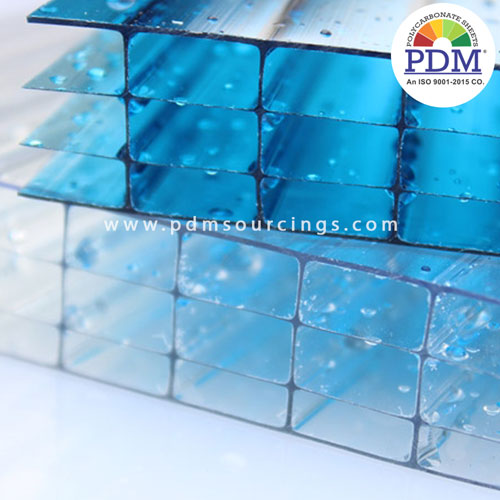

PDM Four Wall
PDM Polycarbonate sheets four-wall, are known for their excellent thermal insulation properties, impact resistance, and versatility. They are commonly used in applications such as roofing, skylights, greenhouse panels, and architectural glazing, providing a balance of strength, light transmission, and energy efficiency.
Colours - Clear, Opal, Blue Green, Bronze etc.
Standard Thickness - 8mm to 20mm
Standard Width - 1220-2100mm (Customisable Subject to MOQ)
Standard length - 11900mm (Customisable Subject to MOQ)
Opaque & Translucent Options Available
Anti Fog, UV Coated & Solar Control Options Available

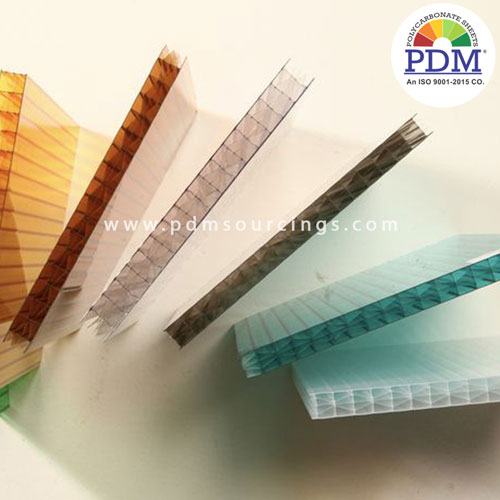

PDM X-Structure
PPDM Polycarbonate sheets X-STRUCTURE, are known for their excellent thermal insulation properties, impact resistance, and versatility. They are commonly used in applications such as roofing, skylights, greenhouse panels, and architectural glazing, providing a balance of strength, light transmission, and energy efficiency.
Colours - Clear, Opal, Blue Green, Bronze etc.
Standard Thickness - 16mm to 28mm
Standard Width - 1220-2100mm (Customisable Subject to MOQ)
Standard length - 11900mm (Customisable Subject to MOQ)
Opaque & Translucent Options Available
Anti Fog, UV Coated & Solar Control Options Available

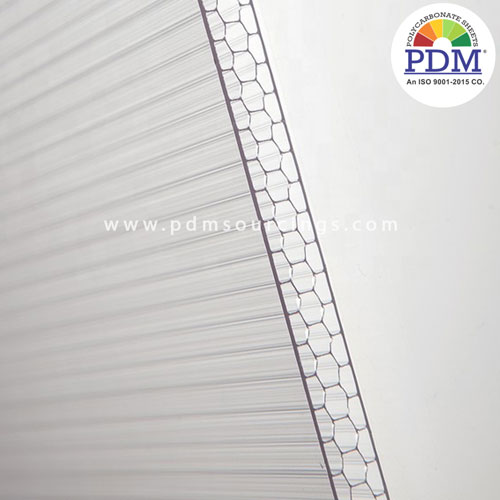

Honeycomb
One of the topics for multiwall polycarbonate sheets is honeycomb polycarbonate sheets. The finest plastic honeycomb panels have a honeycomb-style profile that generates an insulating air space; as a result, the honeycomb polycarbonate panel has a very high impact resistance and high thermal isolation characteristic. Between 50% and 70% of the transparent honeycomb polycarbonate sheet is transparent.
Colours - Clear, Opal, Blue Green, Bronze etc.
Standard Thickness - 10mm to 16mm
Standard Width - 1220-2100mm (Customisable Subject to MOQ)
Standard length - 11900mm (Customisable Subject to MOQ)
Opaque & Translucent Options Available
Anti Fog, UV Coated & Solar Control Options Available
