Polycarbonate X-Structure Hollow Sheet

Products
Polycarbonate X-Structure Hollow Sheet

Polycarbonate X-Structure Hollow Sheet

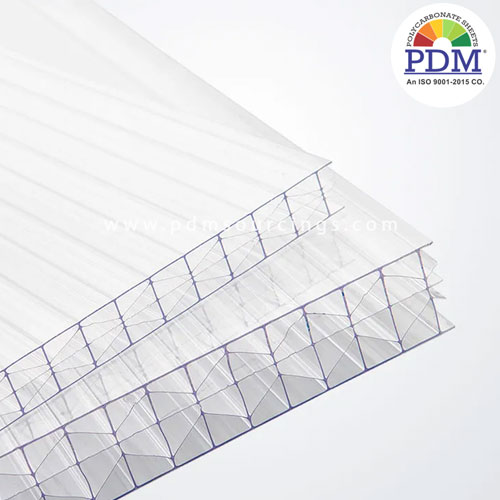

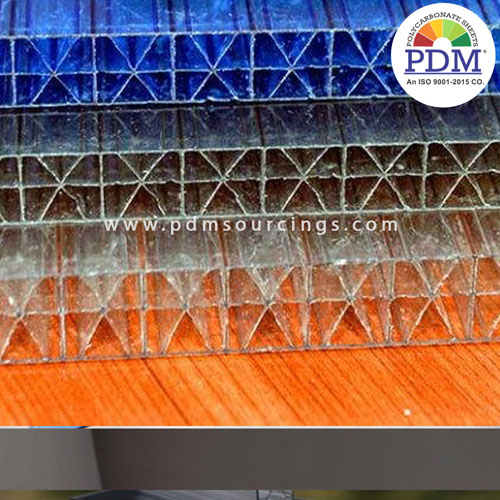

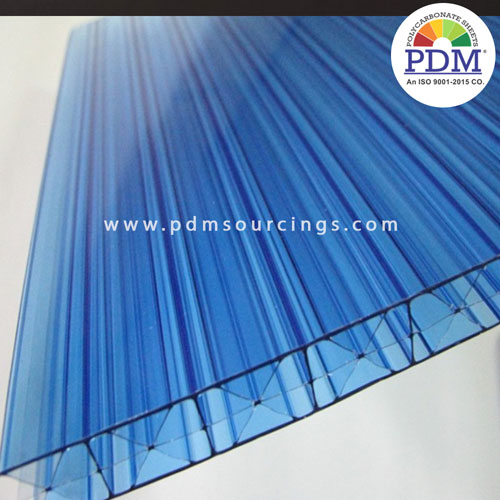

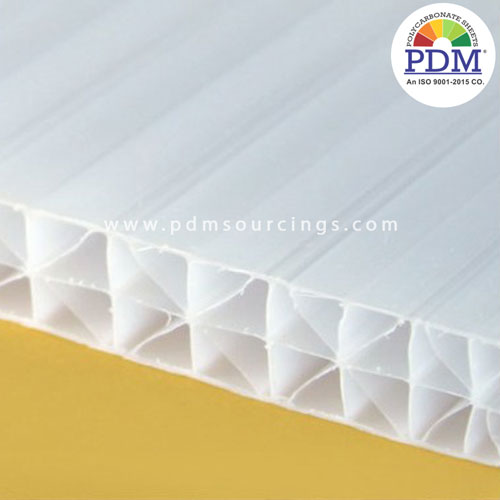

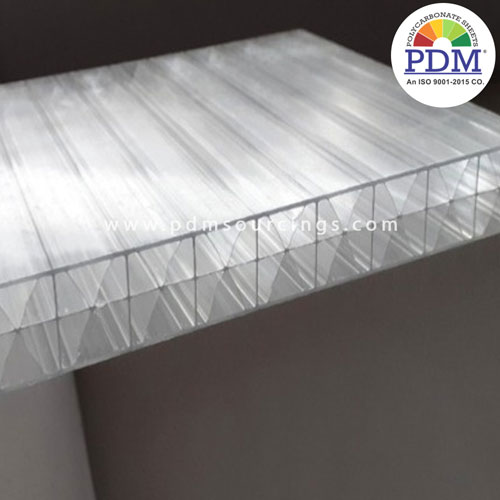

PDM Polycarbonate X-Structure Hollow Sheets are designed for maximum strength and resilience, featuring a unique cross-bracing design that enhances impact resistance and structural integrity. These sheets are ideal for demanding applications where durability and energy efficiency are critical, such as in roofing, skylights, and cladding. The X-Structure provides superior thermal insulation, reducing energy consumption while maintaining excellent light transmission. Lightweight and easy to handle, these sheets are UV-stabilized, ensuring long-term performance without yellowing. Available in various thicknesses and colors, Polycarbonate X-Structure Hollow Sheets offer a robust and versatile solution for modern architectural needs.

Download Brochure Whatsapp

Product Details

Our Range
Standard Dimension
Physical
Installation
Cleaning & maintenance

Colour & Tints	Clear,Blue,Green, Brown (as per requirements)
Thickness	16mm to 28mm
Standard Width	915mm - 2100mm (Can be Customised)
Standard Length	11900 (Can be Customised)
Light Transmission	66%(16mm clear)
Options	One Side UV, Both Side UV
Specials	Anti fog & Solar Control Option Available

Structure	Sheet Thickness (mm)	Standard width(mm)	U-Value w/m²	Falling Dart Nm
	16	2100	2	>27
	20	2100	1.85	>27
	22	2100	1.8	>27
	24	2100	1.75	>27
	28	2100	1.65	>27

PROPERTIES		TEST METHOD	VALUE	UNITS
Mechanical	Tensile strength at yield	DIN 53455	>60	Mpa
	Tensile strength at break	DIN 53455	>70	Mpa
	Elongation at yield	DIN 53455	6-8	%
	Elongation at Break	DIN 53455	>100	%
	Modulus of elasticity	DIN 53457	2300	Mpa
	Charpy notched impact strength	DIN 53453	>50	kJ/m²

Physical	Specific gravity	DIN 53479	1.2	g/cm³
	Refractive index nD25	DIN 53491	1.586
	Water absorption, 24h @23°C	DIN 53495	0.35	%
	Water permeability (thickness 1 mm)	DIN 53122	<2.28	g/m2

Thermal	Softening temperature Vicat 'B'	DIN 53460	148	°C
	Deflection temperature, load 1.8IMPa	DIN 53461	142	°C
	Linear thermal expansion	DIN 53752	6.8x10-5	m/m.K
	Thermal conductivity	DIN 52612	0.2	W/m.K
	Maximum service temperature		Permanent 100	°C
	no loading		Short Term 130	°C

Installation Guide: Polycarbonate Multiwall Sheets

This guide provides general instructions for installing polycarbonate multiwall sheets. For detailed information and product-specific recommendations, please refer to our comprehensive installation catalogue.

Safety First:

Ensure optimal protection by wearing gloves, safety glasses, and long sleeves when handling polycarbonate sheets.

Proper Storage

Store sheets flat on a stable surface, protected from direct sunlight and weather to prevent warping or damage.

Acclimatisation

If the sheets have been in cold storage, allow them to adjust to room temperature before installation to minimise warping.

Gather Tools:

Assemble the necessary tools, including a utility knife, saw (circular or jigsaw recommended for cleaner cuts), drill, and screwdriver.

General Installation Steps

1. Preparation

Measure and Cut: Carefully measure the installation area and cut the polycarbonate sheet to size, leaving a small gap for thermal expansion (consult the catalogue for specific recommendations on gap size).
Identify UV Protection: Locate the UV-protected side of the sheet (usually marked with a film). This side should face upwards during installation for maximum UV protection

2. Support Structure

Strength and Level: Ensure your support structure (framing, rafters, etc.) is level, plumb, and can handle the weight of the polycarbonate sheets. Refer to the catalogue for recommended spacing between support beams to ensure proper load distribution.

3. Cutting and Drilling

Sharp Cuts: Use a sharp blade or saw to cut the polycarbonate sheet, ensuring clean and precise cuts. Avoid scoring or scratching the surface to maintain its integrity.
Proper Drilling: Drill holes at least 2-3 times the diameter of the fastener away from the sheet's edge to prevent cracking. Use drill bits specifically designed for plastics for optimal results.

4. Fastening

Appropriate Fasteners: Use appropriate fasteners with washers designed for polycarbonate sheets to ensure a secure and weatherproof connection. Do not over-tighten, as this can cause the sheet to crack.
Thermal Expansion: Allow for thermal expansion by using slightly oversized holes and slotted fastening points (consult the catalogue for details on recommended hole size and slot design).

5. Sealing (Optional)

Enhanced Weatherproofing: For certain applications, a silicone sealant compatible with polycarbonate may be used to improve weatherproofing. Refer to the catalogue for specific sealant recommendations to ensure compatibility.

6. Protective Film Removal

Final Touches: Once installation is complete, carefully peel off the protective film from both sides of the sheet to reveal the brilliant clarity or rich color of the polycarbonate.

Cleaning and Maintenance: Polycarbonate Multiwall Sheets

To ensure the longevity and optimal performance of your polycarbonate multiwall sheets, follow these cleaning and maintenance guidelines:

1. Regular Cleaning

☑ Use Mild Detergent: Clean the sheets with a mild detergent mixed with lukewarm water. Avoid harsh chemicals or solvents that can damage the surface.
☑ Soft Cloth or Sponge: Use a soft cloth or sponge to gently wipe the surface. Avoid abrasive materials that could scratch the polycarbonate.
☑ Rinse Thoroughly: After cleaning, rinse the sheets with clean water to remove any soap residue, and then dry with a clean, soft cloth to prevent water spots.

2. Stain Removal

☑ Identify Stains: For stubborn stains, use a solution of mild detergent and water. Apply the solution with a soft cloth and gently scrub the area.
☑ Avoid Abrasives: Do not use abrasive cleaners or scrubbing pads, as these can scratch and damage the surface.

3. Inspection

☑ Regular Checks: Periodically inspect the sheets for any signs of damage, such as cracks, scratches, or loose fittings. Address any issues promptly to prevent further damage.
☑ Check Seals: Ensure that any sealing or gaskets are intact and functioning properly to prevent water ingress.

4. Avoid Harsh Conditions

☑ Prevent Accumulation: Regularly remove debris, such as leaves or dirt, to prevent buildup that can obstruct light transmission or cause staining.
☑ Protect from Chemicals: Keep the sheets away from strong chemicals or solvents that could damage the surface or reduce its effectiveness.

5. Professional Maintenance

☑ Consult Experts: For any major repairs or maintenance issues, consult with a professional to ensure that repairs are done correctly and do not void any warranties.

Key Features & Benefits

Lightweight Design: Easier to handle and install quickly.
Flexible and Cold-Bendable: Adaptable for creative, curved architectural designs.
High Impact Resistance: Resists heavy impacts for enhanced safety.
Wide Range of Thicknesses and Colors: Multiple options available for specific applications.

Superior Thermal Insulation: Reduces heat transfer, lowers energy costs.
UV Protection: Blocks UV rays, prevents yellowing effectively.
Excellent Light Transmission: Maximizes natural light, minimizes glare efficiently.
Weather and Chemical Resistance: Endures harsh weather, resists chemicals reliably.
