Polycarbonate Diamond Corrugated Sheet

Products
Polycarbonate Diamond Corrugated Sheet

Polycarbonate Diamond Corrugated Sheet

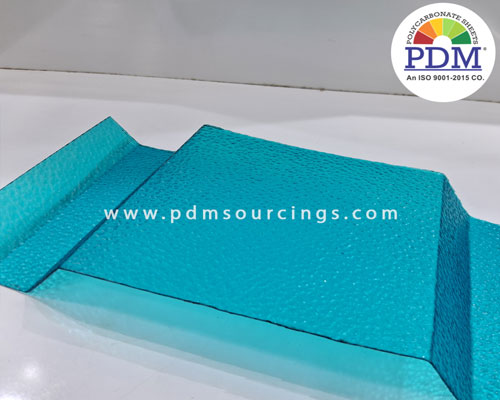

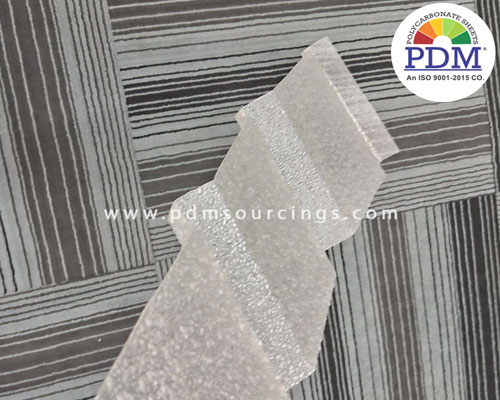

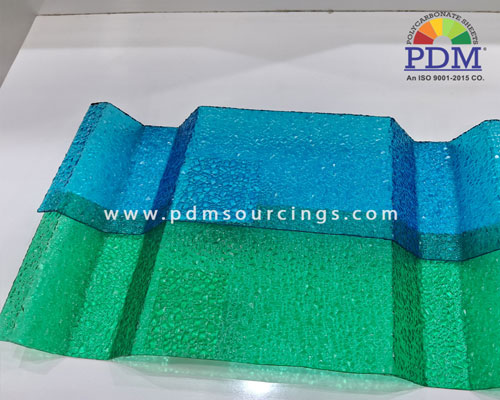

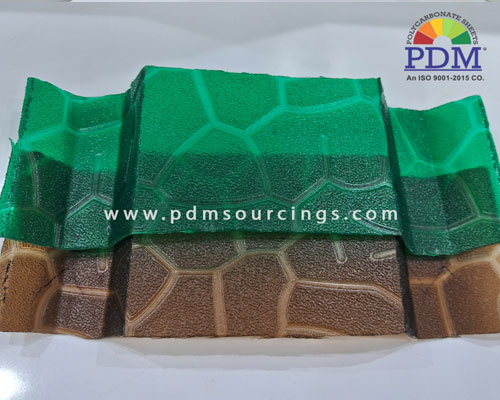

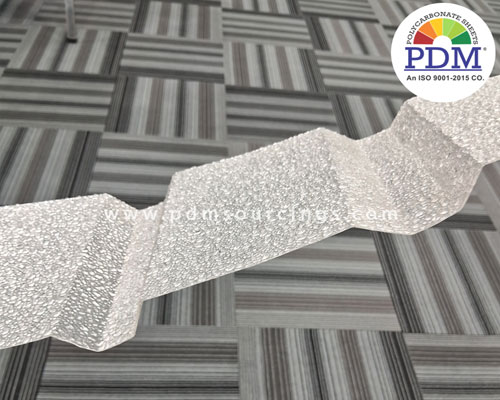

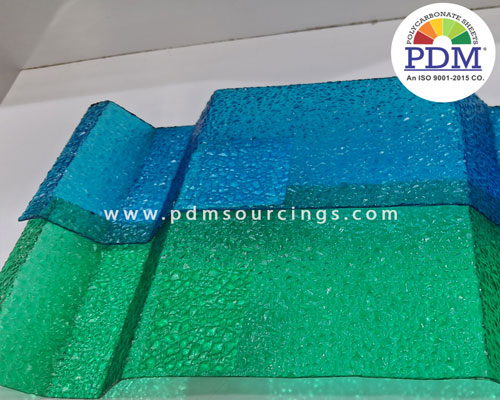

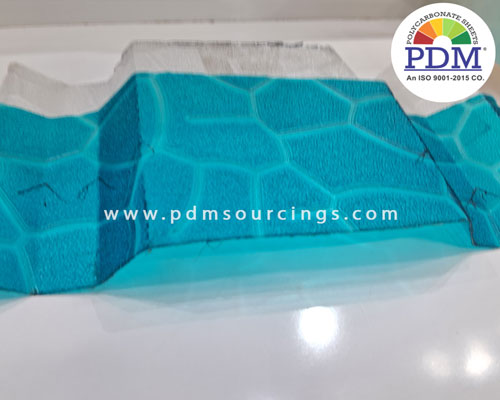

Polycarbonate Diamond Corrugated Sheets combine aesthetic appeal with exceptional durability, making them ideal for various construction applications. These sheets feature a unique diamond texture that not only enhances visual appeal but also increases structural strength, ensuring long-lasting performance. With excellent impact resistance and UV protection, they are perfect for roofing and cladding in industrial, commercial, and residential projects. The sheets are lightweight, easy to install, and available in various thicknesses, providing flexibility for different design needs. Polycarbonate Diamond Corrugated Sheets offer a reliable, weather-resistant solution that adds both functionality and style to any building.

Download Brochure Whatsapp

Product Details

Our Range
Profile Drawings
Physical
Installation
Cleaning & maintenance

Colour	Clear and Other Textures (as per requirements)
Thickness	2mm to 3mm
Standard Width	1070mm (Can be Customised)
Standard Length	3050mm (Can be Customised)
Light Transmission	80%(clear)
Options	One Side UV, Both Side UV
Specials	Anti fog & Solar Control Option Available

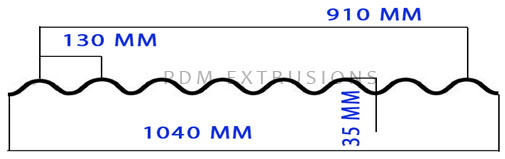

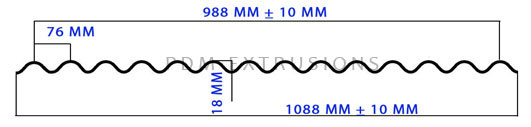

Model No. - C-76	Model No. - C-130

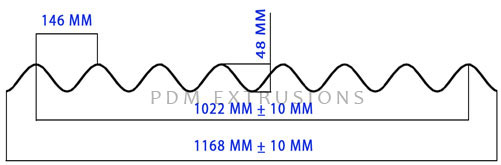

Model No. - C-146

PROPERTIES TEST		METHOD VALUE UNITS	VALUE	VALUE
Mechanical	Tensile strength at yield	DIN 53455	>60	MPa
	Tensile strength at break	DIN 53455	>70	MPa
	Elongation at yield	DIN 53455	6--8	%
	Elongation at break	DIN 53455	>100	%
	Modulus of elasticity	DIN 53457	>2300	MPa
	Charpy notched impact strength	DIN 53453	>50	kJ/m2

Physical	Specific gravity	DIN 53479	1.2	g/cm3
	Refractive index nD5	DIN 53491	1.586
	Water absorption, 4h @ 23°C	DIN 53495	0.35	%
	Water permeability (thickness 1mm)	DIN 5322	<2.28	g/m2

Thermal	Softening temperature - Vicat ‘B’	DIN53460	148	°C
	Deflection temperature (load 1.81MPa)	DIN53461	142	°C
	Linear thermal expansion	DIN53752	6.8x10-5	m/m.K
	Thermal conductivity	DIN52612	0.2	W/m.K
	Maximum service temperature		Permanent 100	°C
	no loading		Short term 130	°C

Installation Guide: Polycarbonate Corrugated Sheets

This guide provides general instructions for installing corrugated polycarbonate sheets. For detailed information and product-specific recommendations, please refer to our comprehensive installation catalogue.

Safety First: Ensure optimal protection by wearing gloves, safety glasses, and long sleeves when handling polycarbonate sheets.

Proper Storage: Store sheets flat on a stable surface, protected from direct sunlight and weather to prevent warping or damage.

Acclimatisation: If the sheets have been in cold storage, allow them to adjust to room temperature before installation to minimise warping.

Gather Tools: Assemble the necessary tools, including a utility knife, saw (circular or jigsaw recommended for cleaner cuts), drill, and screwdriver.

General Installation Steps

1. Preparation

Measure and Cut: Carefully measure the installation area and cut the polycarbonate sheet to size, leaving a small gap for thermal expansion (consult the catalogue for specific recommendations on gap size).
Identify UV Protection: Locate the UV-protected side of the sheet (usually marked with a film). This side should face upwards during installation for maximum UV protection

2. Support Structure

Strength and Level: Ensure your support structure (framing, rafters, etc.) is level, plumb, and can handle the weight of the polycarbonate sheets. Refer to the catalogue for recommended spacing between support beams to ensure proper load distribution.

3. Cutting and Drilling

Sharp Cuts: Use a sharp blade or saw to cut the polycarbonate sheet, ensuring clean and precise cuts. Avoid scoring or scratching the surface to maintain its integrity.
Proper Drilling: Drill holes at least 2-3 times the diameter of the fastener away from the sheet's edge to prevent cracking. Use drill bits specifically designed for plastics for optimal results.

4. Fastening

Appropriate Fasteners: Use appropriate fasteners with washers designed for polycarbonate sheets to ensure a secure and weatherproof connection. Do not over-tighten, as this can cause the sheet to crack.
Thermal Expansion: Allow for thermal expansion by using slightly oversized holes and slotted fastening points (consult the catalogue for details on recommended hole size and slot design).

5. Sealing (Optional)

Enhanced Weatherproofing: For certain applications, a silicone sealant compatible with polycarbonate may be used to improve weatherproofing. Refer to the catalogue for specific sealant recommendations to ensure compatibility.

6. Protective Film Removal

Final Touches: Once installation is complete, carefully peel off the protective film from both sides of the sheet to reveal the sheet's clarity and finish.

Cleaning and Maintaining Polycarbonate Corrugated Sheets

Polycarbonate Corrugated sheets, including transparent, translucent, and opaque varieties, are known for their durability and clarity. To ensure they stay looking their best and function optimally for years to come, follow these simple cleaning and maintenance tips:

1. Regular Cleaning: Gently clean your polycarbonate Corrugated sheets periodically to remove dirt, dust, and debris. Here's what you'll need:
o Mild soap solution (dish soap works well)
o Lukewarm water
o Soft cloths (microfiber cloths are ideal)

2. Cleaning Process Mix the soap solution with lukewarm water. Dip a soft cloth into the solution, wring it out to avoid excess moisture, and gently wipe down the corrugated sheet. Rinse thoroughly with clean water to remove any soap residue. Dry the sheet with another soft, lint-free cloth to avoid streaks

3. Avoid Harsh Chemicals: Polycarbonate is susceptible to damage from harsh chemicals, abrasive cleaners, and solvents. These can cause the surface to become dull or even crack. Stick to the mild soap solution for routine cleaning.

4. Tough Stains: For stubborn stains, use a diluted solution of white vinegar and water. Apply with a soft cloth, gently scrub the stain, and rinse thoroughly with clean water.

5. Scratch Prevention: To prevent scratches, avoid using abrasive materials or dragging objects across the surface. Handle the sheets with care during installation and maintenance.

6. Additional Tips:
o Use polycarbonate-specific tapes for temporary fixes or masking during maintenance to protect the sheets from scratches.
o Regular cleaning helps maintain the sheet's clarity and durability, ensuring long-lasting performance

By following these guidelines, you can keep your polycarbonate corrugated sheets in excellent condition and ensure their longevity and functionality.

Key Features & Benefits

Superior Fire Resistance: Self-extinguishes with low smoke production.
High Impact Durability: Ideal for protective barriers and security shields.
Outstanding Light Transmission: Ensures bright spaces with UV shielding.
Long-Lasting and Low Maintenance: Resists yellowing and wear over time

UV and Weather Resistant: Protects against sun damage, preserving clarity.
Lightweight and Easy to Handle: Facilitates quick installation and movement.
Flexible Design Options: Cold-bendable for innovative architectural applications.
Tough in Extreme Conditions: Endures rain, hail, snow, and harsh temperatures.
